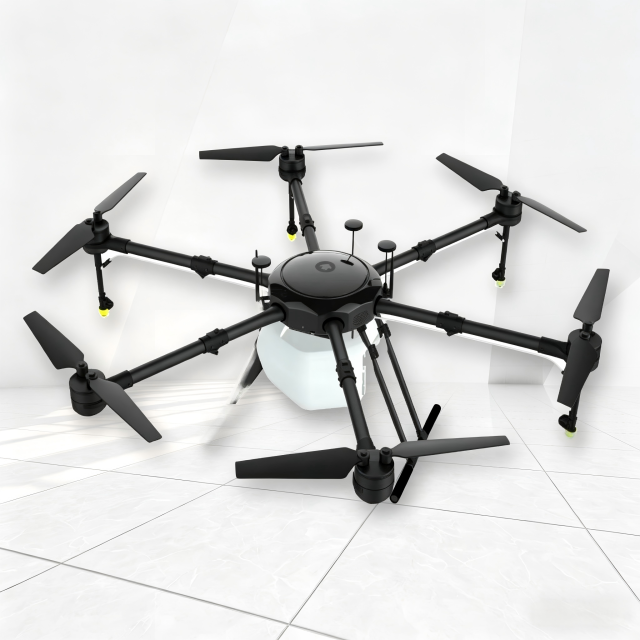

Industrial UAV LH-SN1800-1.8M | 6-Axis Carbon Fiber Drone with Long Endurance & High Payload

Product Description

Functional Positioning Tailored for Industrial Operators

The LH-SN1800-1.8M professional drone is designed primarily for industrial and commercial operators requiring reliable aerial platforms capable of carrying heavy payloads up to 20 kg. As one of the advanced drone manufacturers’ flagship models, it addresses the need for efficient, adaptable unmanned aerial systems to support precision surveying, inspection, and mapping tasks. This six-axis drone offers superior stability and flight endurance, suited for professionals who require dependable and versatile equipment for rigorous operational environments in sectors such as infrastructure, agriculture, and public safety.

Advanced Technical Architecture and Specifications

This drone incorporates a 3K carbon fiber prepreg airframe, providing an optimal balance of rigidity and lightweight characteristics, resulting in flight times ranging from 15 to 18 minutes even while carrying maximum payloads. Technical features include differential GNSS supporting GPS, GLONASS, Galileo, and BDS satellites, enabling centimeter-level navigation accuracy. Equipped with a fast-charging lithium battery system, the drone manufacturer’s design achieves rapid turnaround times, with assembly completed in under three minutes. Control and data transmission operate over a 15 km range, integrating real-time HD video feeds and safety systems such as automatic emergency landing, all ensuring high operational efficiency.

Industry Applications Enhancing Operational Value

The LH-SN1800-1.8M drone serves as an integral tool for multiple industries by enabling comprehensive aerial data collection and inspection. Its high payload capacity supports dual-optical optoelectronic pods and orthophoto cameras, fulfilling demanding surveying and mapping workflows. Adaptability offered by modular payload attachments facilitates mission-specific configurations for industrial infrastructure monitoring, environmental surveys, and emergency response operations. This professional drone’s robust IP54 rating and long-range autonomous flight capabilities increase operational reliability across challenging weather conditions and extended mission durations, delivering measurable improvements in data quality and response times.

Product Advantages

Structural and Design Excellence in Industrial Drones

This drone manufacturer engineered the LH-SN1800-1.8M with a modular six-axis carbon fiber frame, balancing durability and weight to maximize flight stability. The quick-assembly system allows field deployment or dismantling within minutes, aligning with operational efficiencies demanded by professional drone users. The integration of standardized battery compartments and payload bays enables flexible sensor configurations without compromising structural integrity. Additionally, the IP54 airframe ensures protection against dust and light rain, reinforcing its suitability for varied industrial environments where reliability and adaptability are critical.

Optimized Performance and User-Centric Features

Performance-wise, the LH-SN1800-1.8M delivers consistent flight endurance up to 18 minutes at cruising speeds exceeding 45 km/h, accommodating complex missions requiring high payloads. Fast lithium battery charging and intelligent power management reduce downtime, essential for operational continuity. User interfaces include a 7-inch HD ground control station with over six hours of battery life, enhancing mission oversight and data management. Integrated safety protocols such as one-key return, low battery alerts, and emergency landing safeguard assets, providing professional drone operators with a dependable platform optimized for ease of use, mission versatility, and risk mitigation.

Use Scenarios

Aerial Surveying and Infrastructure Inspection

Within the surveying and infrastructure sectors, the LH-SN1800-1.8M drone plays a critical role in capturing high-resolution optical and orthophoto imagery for precise mapping, structural assessment, and maintenance planning. Its capacity to carry dual-optical pods supports detailed data acquisition, while certified navigation systems meet regulatory requirements ensuring operational compliance. Integration with existing survey workflows allows seamless data transfer and real-time monitoring through the professional drone’s HD transmission capabilities. The drone’s lightweight carbon fiber construction and rapid deployment facilitate agile response in field conditions, improving time efficiency and data accuracy in construction projects and public utilities inspection.

Emergency Response and Security Monitoring

In emergency management and security operations, this drone manufacturer’s product offers rapid aerial assessment with advanced obstacle avoidance and autonomous flight functions. The LH-SN1800-1.8M’s weather-resistant airframe and extended control range enable safe operation in light rain and complex terrains, providing critical situational awareness during disaster relief or security patrols. Its high payload flexibility supports real-time video feeds and sensor deployments, integrating with command center platforms for coordinated response. This professional drone enhances operational readiness by offering resilience, precise navigation, and quick assembly, thereby facilitating effective aerial reconnaissance and emergency interventions.

Technical index

Flying platform

Model: LH-SN1800 body adopts six-axis multi-rotor, folding arm configuration; Body material: carbon fiber integrated molding technology; Power system: Lithium battery power system; smart fast charge battery, fast charging in 20 minutes; support IP65 dustproof and waterproof Body size: 1800mm Maximum take-off gross weight 35kg, maximum mission load 20kg Vertical take-off and landing capability without manual intervention, landing point offset ≤20cm; Endurance time 15-18min (with CMAN, CAL, LAC-MRA, CNAS and the test report certified by the Ministry of Public Security); Cruising speed ≥45km/h, maximum level flight speed ≥54km/h; Wind resistance ≥ Level 7 (with CMAN, CAL, LAC-MRA, CNAS and test reports certified by the Ministry of Public Security); Take-off altitude ≥3500m, level flight altitude ≥5000m; Flight attitude stability: pitch angle stability ≤ 4°, roll angle stability ≤ 5°, yaw angle stability ≤ 3°; The image transmission scheme adopts an integrated scheme of image and data, with a frequency of 2.4 GHz and a control distance of 15 kilometers (standard version, customizable); Flight control deviation: track deviation ≤0.5m, standard deviation ≤0.3m; Hovering control deviation: horizontal deviation≤0.3m, vertical deviation≤0.3m; 模块化设计，具有快速组装和拆收功能，组装和拆收时间均小于3min（具备CMAN、CAL、LAC-MRA、CNAS及公安部认证的检测报告）； The drone supports one-key return to home, supports low battery voltage alarm; supports link interruption to return; supports flight area limitation function; The flight platform has the function of measuring the heading and angle of the airborne dual GPS; The mission cabin of the flight platform has a photoelectric pod quick release mechanism. Facilitate quick disassembly of the pod before and after the mission； Night navigation capability: with navigation indicator; Carrying capacity: It has the ability to simultaneously carry multiple devices such as dual-optical optoelectronic pods, image transmission, and orthophoto cameras; Scalability: It can be replaced with other sensors such as lidar;

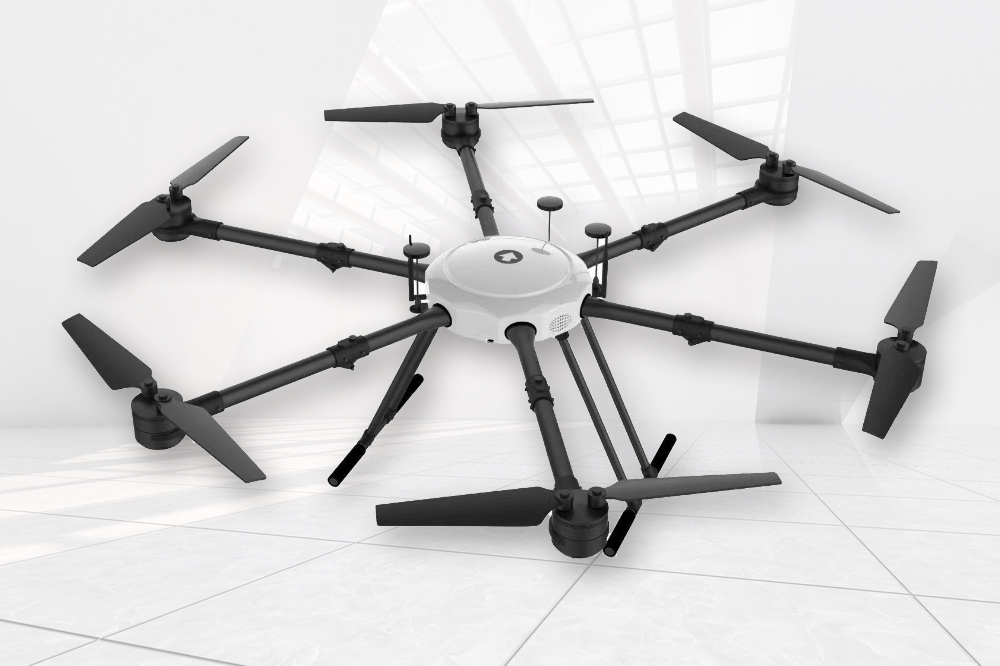

Flight control and navigation system

Support full-process and fully autonomous flight； Differential GNSS system supports GPS, GLONASS, Galileo, BDS four-star and eight-frequency signals； Equipped with ground station monitoring function, which can monitor the operation status of the drone in real time at the ground station； Emergency response capability: has the function of near-ground avoidance; Temperature compensation, all sensors can perform temperature compensation in the range of -20 degrees to 70 degrees; Sensor integration, with 3-axis accelerometer, 3-axis angular velocity meter, magnetic sensor, dynamic and static pressure sensor; The black box can store 4 hours of detailed flight data at a frequency of 50 Hz; Waypoints, ≥800; Update frequency, ≥200Hz;

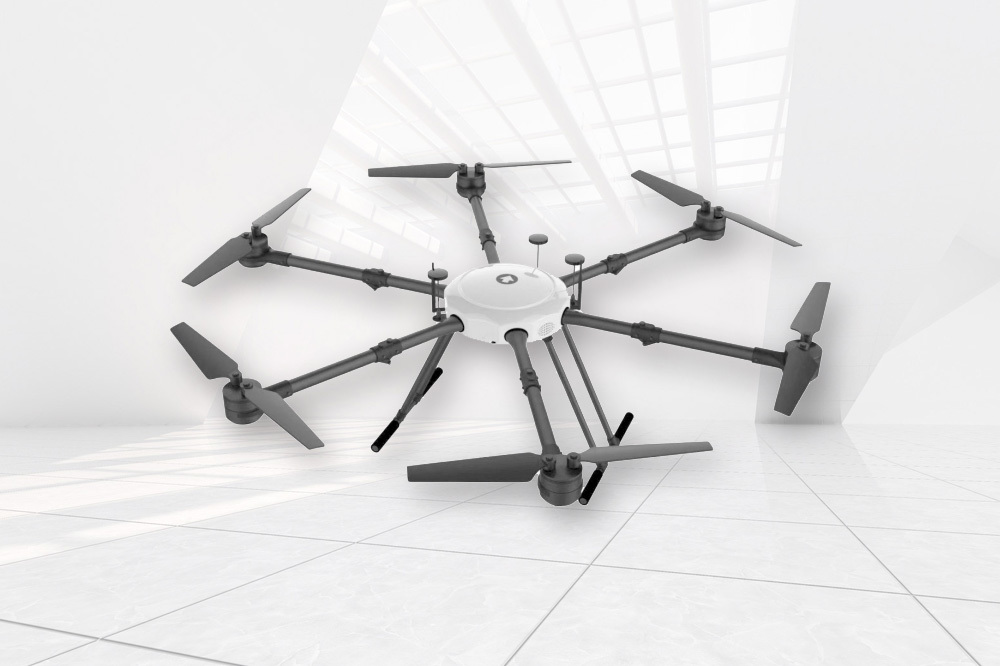

Broadband link

Support the whole process and fully autonomous flight; Differential GNSS system supports GPS, GLONASS, Galileo, BDS four-star and eight-frequency signals; With the monitoring function of the ground station, the operation status of the drone can be monitored in the ground station in real time; Emergency response capability: has the function of near-ground avoidance; Temperature compensation, all sensors can perform temperature compensation in the range of -20 degrees to 70 degrees; Sensor integration, with 3-axis accelerometer, 3-axis angular velocity meter, magnetic sensor, dynamic and static pressure sensor; The black box can store 4 hours of detailed flight data at a frequency of 50 Hz; Waypoints, ≥800; Update frequency, ≥200Hz;

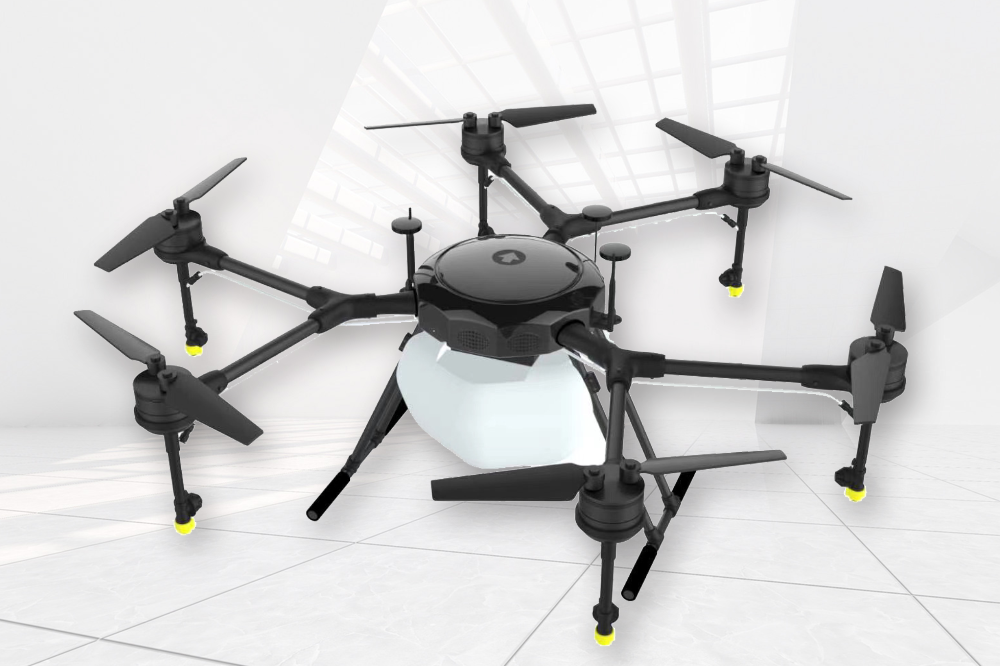

 The ground command station is a handheld ground operation terminal, integrated with a 7-inch high-definition high-brightness screen, the screen resolution is ≥1080P, and the total weight is 1kg;

Operating system: Android; Digital image transmission and remote control: data link, remote control link, and video link are integrated; Built-in battery working time ≥6h, and with external backup battery access function; Support USB projection to computer or display screen; Control radius ≥15 kilometers (standard version, can be customized); Built-in GPS, built-in 4G module; Working temperature: -20℃~60℃; Support one aircraft dual control function, which can realize separate control of aircraft and mount; Pod angle control, zoom, infrared mode, screen switching, image tracking, infrared correction, OSD display, brightness adjustment, contrast adjustment, landing instructions and other functional physical buttons; It supports standard pre-flight inspection, and cannot take off if it fails the self-inspection; Support multiple mission modes such as area scan, path scan, fixed-point gaze, etc., automatically plan and execute the flight plan, improve mission efficiency; Comprehensive display of system status and task status, including: attitude, speed, altitude, position, route status, battery status, link status, photoelectric pod status and other information, image data (infrared images include heat map data) can be stored and exported, The flight log data is complete, can be stored and exported; Support custom video OSD display information content and language; Support route preview function, which can visually display route altitude and terrain altitude difference to avoid mountain collision accidents; Support automatic emergency landing, in case of failure and unable to return to the preset landing point, the nearest preset emergency landing point will be automatically selected for forced landing to ensure safety; Support real-time video output, and input the video of the photoelectric pod to the back-end equipment through the network port;
