📄 Short Description
🟢 The Howo Truck with Crane is a powerful and practical solution for lifting and transporting heavy loads. Built on a durable 3‑axle Howo chassis with 440 horsepower, this truck mounted crane offers a maximum lifting height of 10 to 15 meters. Ideal for construction sites, warehouses, utilities, and material handling. With a 1‑year warranty and proven reliability, this used crane truck delivers excellent value and performance.
⭐ Key Features
🚛 440HP Strong Engine – Reliable power for road driving and crane operation
🏗️ 10–15m Lifting Height – Telescopic boom reaches high and far
⚙️ Manual Transmission – Full control with FAST RTD‑11509C gearbox
🛞 Heavy Duty Tires – 12.00R20 for rough terrain
🧰 Hydraulic Outriggers – Extra stability during heavy lifts

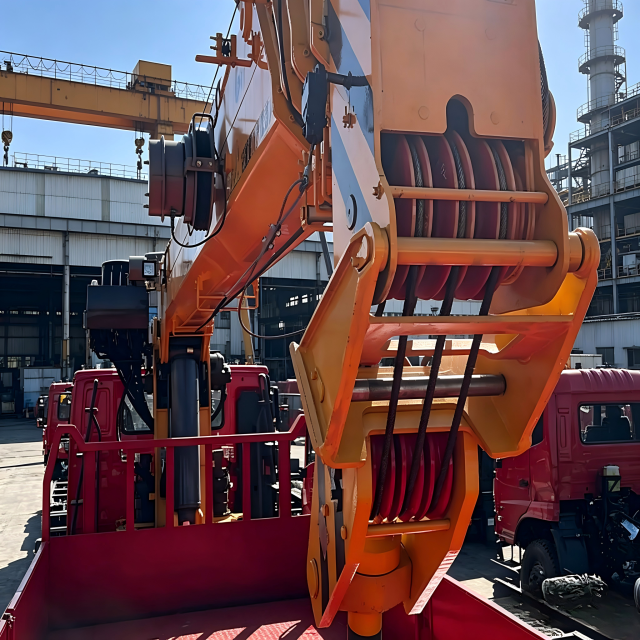

🔧 Telescopic Boom + Winch – Precise positioning and smooth lifting
🧱 High‑Strength Steel Chassis – Built for heavy daily use

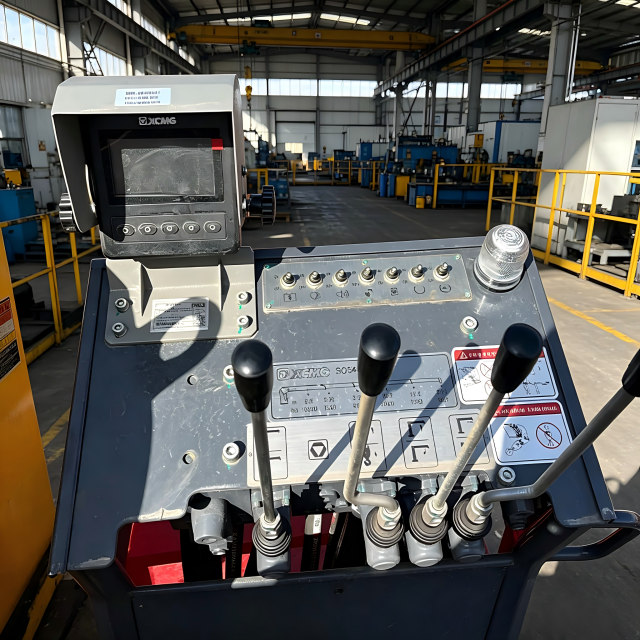

🎮 Operator Cabin with Joysticks – Clear view and easy crane control
📏 Specifications
🚛 Model: HOWO
📅 Condition: Used (1 year warranty)
⚡ Horsepower: 440 HP (250 kW)
🧮 Axles: 3
🌍 Emission Standard: Euro 2
⚖️ GVW: 25,000 kg
📐 Dimensions (L×W×H): 11500 × 2550 × 3300 mm
⏱️ Max Speed: 75 km/h
🔧 Engine Displacement: 9.726 L
🕹️ Transmission: FAST RTD‑11509C + QH50 (Manual)
⛽ Fuel Tank: 400L aluminum alloy
🛞 Tires: 12.00R20
🛑 Brakes: Dual circuit compressed air (running) + spring control (parking) + engine exhaust brake
🧾 Product Description
🏗️ The Howo truck mounted crane combines a heavy‑duty chassis with a powerful hydraulic crane. The high‑strength steel chassis supports a 440HP engine that drives both the truck and the crane system.
🔧 The crane features a telescopic boom (10–15m lifting height) and a winch for precise load handling. Hydraulic cylinders control boom movement smoothly. The operator cabin provides joysticks, buttons, and gauges for safe control.
🦵 Hydraulic outriggers extend and adjust to different ground conditions, preventing tipping during heavy lifts. This design makes the Howo crane truck a reliable partner for lifting and moving heavy materials on job sites.
🏗️ Application
🏠 Construction – lifting steel, concrete, prefabricated parts
📦 Logistics & Warehousing – loading/unloading heavy cargo
⚡ Utilities – power line and pole installation
⛏️ Mining & Quarrying – moving equipment and materials
🌲 Forestry – handling logs and timber
🚚 Flatbed & Freight Support – self‑loading and unloading
❓ FAQ
❓ Q: What is the maximum lifting height of the crane?
✅ A: The telescopic boom reaches 10 to 15 meters, depending on load weight and extension.
❓ Q: Is the truck still under warranty?
✅ A: Yes, this used Howo truck with crane comes with a 1‑year warranty.
❓ Q: Can the crane lift while the truck is moving?
✅ A: No. Lifting must be done when the truck is stationary and outriggers are deployed.
❓ Q: What kind of fuel does it use?
✅ A: Diesel. The truck has a 400L aluminum alloy fuel tank.
❓ Q: Do you provide shipping support?
✅ A: Yes. We offer Ro‑Ro, container, and bulk carrier transport options based on your needs.
🚢 Shipping
🚢 Ro‑Ro Transport – Fast loading/unloading, ideal for large quantities. Trucks drive directly onto the ship.
📦 Container Transport – Full protection from weather and dust, flexible for multi‑modal shipping (ship + truck + train).
🚢 Bulk Carrier Transport – Most cost‑effective for large volumes, stable for long‑distance voyages.
📞 Contact us to choose the best shipping solution for your location and budget.
