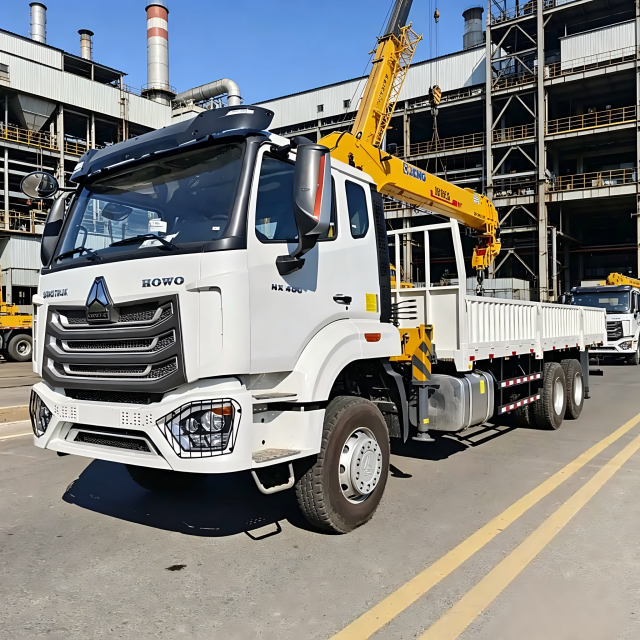

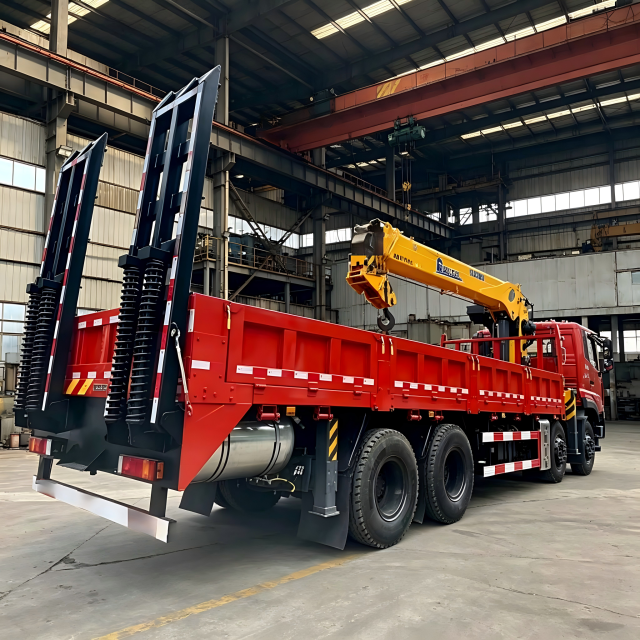

The New Howo TX400 is a powerful truck mounted crane that combines a durable Sinotruk chassis with a high-capacity hydraulic crane. Designed for lifting and transporting heavy loads, it delivers 400 horsepower and a maximum lifting height of 10 to 15 meters. This new unit comes with a 1-year warranty and is ideal for construction sites, logistics hubs, and utility projects.
✅ 400HP strong diesel engine for reliable power on road and at worksite
✅ Telescopic boom with hydraulic control – precise lifting up to 15 meters
✅ Heavy-duty high-strength steel chassis for superior stability
✅ FAST manual transmission with 9 forward gears + QH50 auxiliary
✅ Dual circuit compressed air brakes + engine exhaust brake for safety
✅ Hydraulic outriggers for extra stability during heavy lifts
✅ 400L aluminum alloy fuel tank for extended operation
✅ 12.00R20 heavy duty tires suitable for rough terrain
✅ Euro 2 emission standard – compliant with many global markets
✅ 1 year warranty and online after-sales support
🔹 Truck Model – New Howo TX400
🔹 Horsepower – 400 HP
🔹 Number of Axles – 3 axles
🔹 Maximum Lifting Height – 10-15 meters
🔹 Emission Standard – Euro 2
🔹 Gross Vehicle Weight – 25,000 kg
🔹 Dimensions (L×W×H) – 11500 × 2550 × 3300 mm
🔹 Max Speed – 75 km/h
🔹 Engine Rated Power – 250 kW / 340 HP (displacement 9.726L)
🔹 Transmission – FAST RTD-11509C + QH50 (manual)
🔹 Suspension – Front and rear multi-leaf spring
🔹 Fuel Tank – 400L aluminum alloy
🔹 Tires – 12.00R20
🔹 Brakes – Dual circuit compressed air (running) + spring control (parking) + engine exhaust (auxiliary)

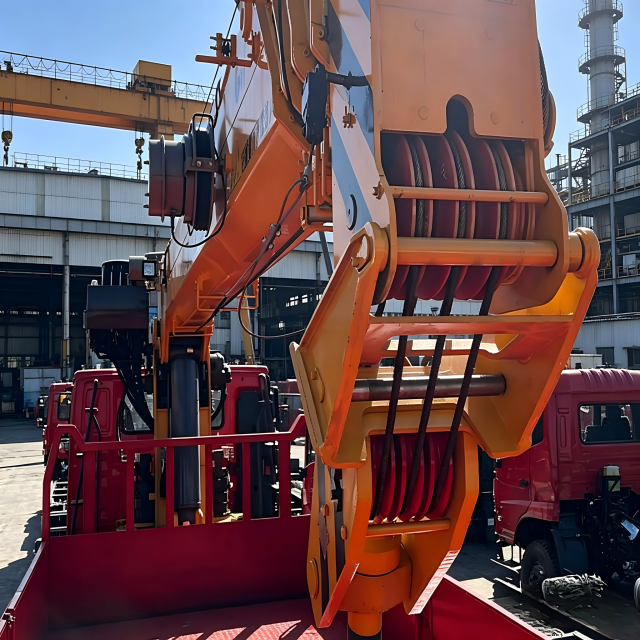

The New Howo TX400 is built on a heavy-duty Sinotruk chassis made of high-strength steel, providing outstanding rigidity and load capacity. The crane unit features a telescopic boom constructed from strong alloy materials, allowing extended reach and smooth retraction. Hydraulic cylinders and a powerful winch system with high-strength cable ensure precise lifting and lowering of heavy objects.

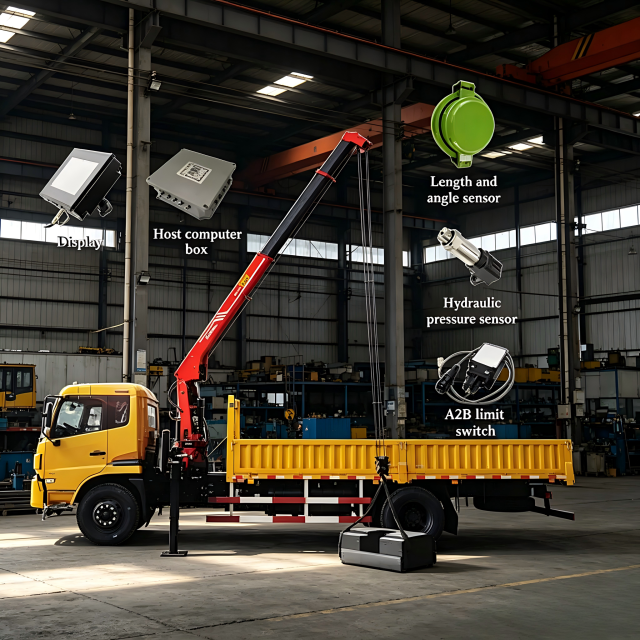

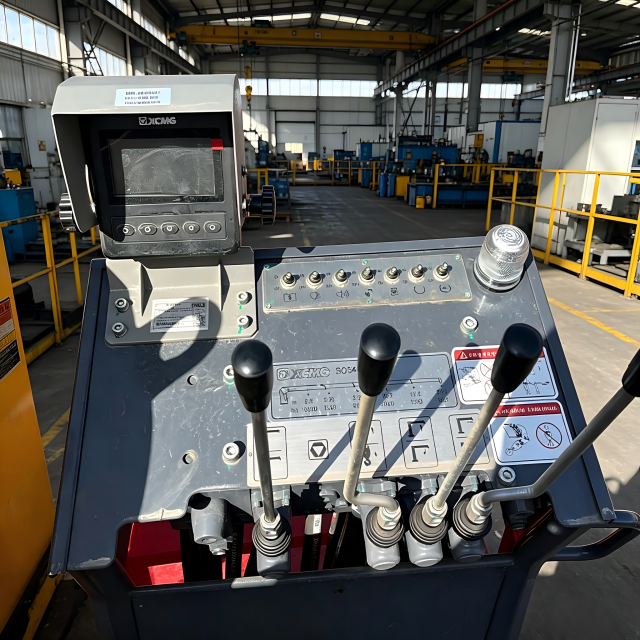

The operator’s cabin offers excellent visibility and intuitive controls including joysticks for boom movement, winch buttons, and real-time load/angle gauges. Deployable hydraulic outriggers with adjustable length and angle provide maximum stability on various ground conditions. Together, these features make the Howo TX400 a reliable and efficient partner for daily heavy lifting tasks.
🚧 Construction – Loading/unloading building materials, erecting steel structures, placing precast concrete elements
📦 Logistics & Warehousing – Handling heavy cargo at depots, loading flatbed trucks, moving machinery
⚡ Utilities – Power line maintenance, transformer installation, pole setting
⛏️ Mining & Forestry – Moving equipment, handling timber and heavy supplies
🏭 Industrial Plants – Machine installation, maintenance lifting, material handling on site
Q1: What is the maximum lifting height of the Howo TX400 crane?
A: The telescopic boom allows a lifting height between 10 and 15 meters, depending on load weight and boom extension.
Q2: Is this truck suitable for rough terrain and long distance driving?
A: Yes. With 12.00R20 tires, multi-leaf spring suspension, and a 400L fuel tank, the Howo TX400 performs reliably on unpaved sites and also supports highway travel up to 75 km/h.
Q3: What after‑sales support is included?
A: The vehicle comes with a 1‑year warranty and online technical support. Our team can provide spare parts guidance, maintenance advice, and remote troubleshooting.
Q4: Can the crane be operated from both sides?
A: The control cabin is ergonomically designed for one operator, but optional remote control may be available upon request. Please contact us for customization.
We offer three main transport methods for exporting the New Howo TX400 Truck Mounted Crane:
🚛 Ro‑Ro (Roll‑on/Roll‑off) – Quick loading and unloading, minimal handling damage, ideal for large quantities.
📦 Container Transport – Fully enclosed protection against weather, salt spray and dust; supports intermodal delivery (ship + truck + train).
⛴️ Bulk Carrier – Most economical for mass exports; very large capacity lowers unit shipping cost.
The final shipping method is arranged based on your specific requirements and vehicle condition. Contact us to get the best logistics solution for your order.
